Miata Suspension Geometry Explained by Generation

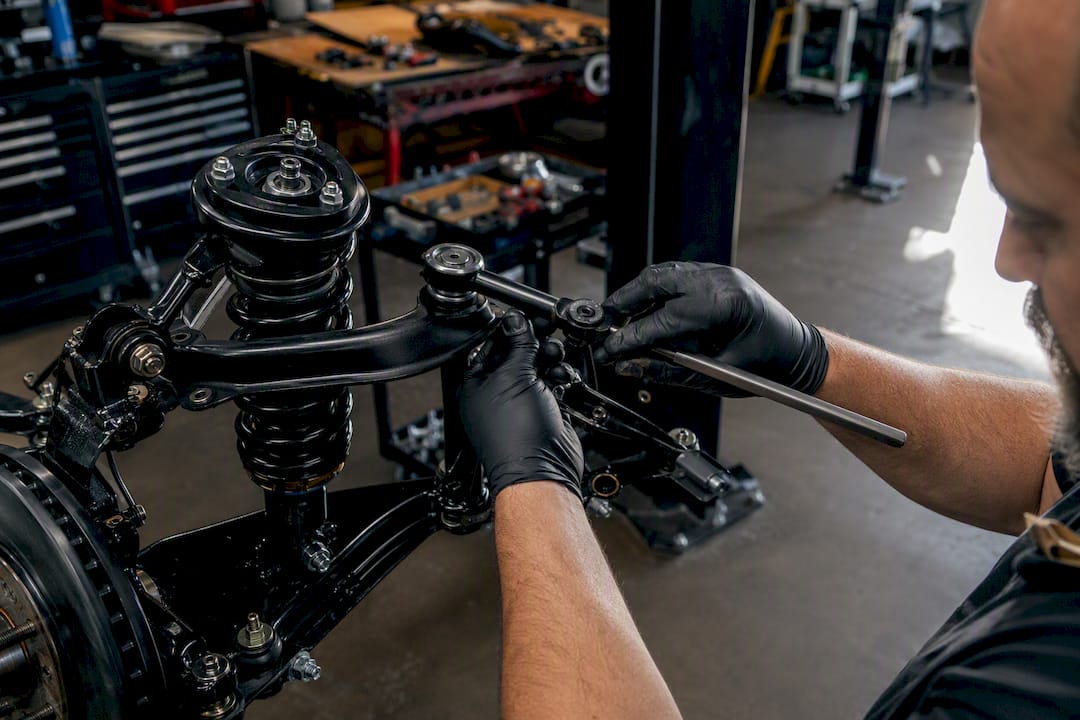

Miata suspension geometry is the arrangement and motion of control arms, links, and steering components that determine how camber, toe, and roll center change as the car moves through its travel. Get that arrangement right and the tire stays flatter through the contact patch, turn-in stays predictable, and mid-corner grip holds instead of fading. That’s the whole game.

Every Miata, from the 1990 NA to the current ND, runs a double-wishbone front end. The rear evolved from double-wishbone (NA/NB) to a five-link multi-link (NC/ND) specifically to manage toe and camber under load more precisely as the car rolls. Understanding Miata geometry means understanding a handful of specific factors that show up again and again in shop reports and tuning conversations:

• Camber gain — how much negative camber the wheel picks up as it compresses
• Toe curves and bump steer — unwanted steering input caused by suspension travel
• Roll center — the pivot point around which the chassis rolls in a corner

Every adjustment you make, from a camber kit to a stiffer sway bar, changes one of these three things. Once you see the connections, alignment sheets stop looking like a wall of numbers.

Key Takeaways

Miata suspension geometry works because its double-wishbone front and evolving rear layout let camber, toe, and roll center be tuned independently, and every modification only pays off when motion ratio and a documented baseline back it up.

Point	Details
Layout evolved for a reason	NC/ND switched the rear to a five-link multi-link to manage toe and camber separately under load.
Motion ratio changes spring math	The front end’s roughly 0.7:1 ratio means wheel rate isn’t the same as spring rate, so convert before buying.
Baseline before everything	Set ride height, corner-weight with sway bars disconnected, then set caster, camber, and toe in that order.
Wear mimics bad tuning	Worn bushings and tie-rod ends shift geometry gradually and can look like a setup problem.
Street and track pull opposite ways	Track alignment settings sacrifice tire life and comfort for grip that a street car rarely needs.

Table of Contents

• How Miata Suspension Geometry Changed From NA to ND
• What Do Front and Rear Suspension Kinematics Actually Do?
• Which Geometry Factors Change How a Miata Handles?
• How Do You Set a Repeatable Miata Suspension Baseline?
• How Does Suspension Wear Change Geometry Over Time?
• What Tools Measure Suspension Geometry Accurately?
• Street Setup Versus Motorsport Suspension Tuning
• Common Mistakes When Adjusting Miata Suspension Geometry
• Why Motion-Ratio Math Matters More Than Most Guides Admit
• Sources
• FAQ

How Miata Suspension Geometry Changed From NA to ND

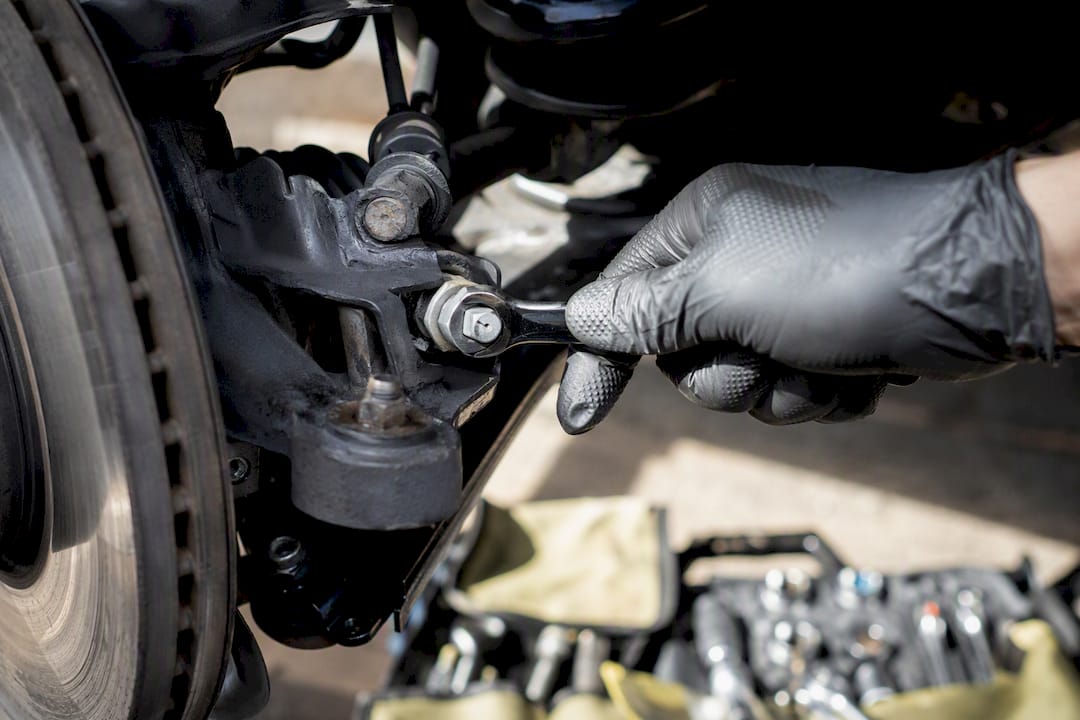

The NA and NB Miatas run double-wishbone suspension at all four corners, a layout borrowed from serious sports car engineering rather than the strut setups common on economy cars of the era. Double-wishbone geometry gives Mazda’s engineers control over camber curves at both ends, and it made the front and rear arms easy to adjust with eccentric bolts, which is why 30-year-old NA suspensions still respond well to basic camber and caster tuning.

The NC and ND generations kept the front double-wishbone architecture but swapped the rear for a five-link multi-link setup. That change wasn’t cosmetic. A multi-link rear lets Mazda assign separate links to control toe and camber independently, something a simple double-wishbone rear can’t do as cleanly, which matters once the rear tire is loaded hard in a fast sweeper.

Three other shifts matter just as much as the layout itself:

1. Material changes. Later generations shifted control arms and knuckles toward aluminum, cutting unsprung mass and letting the suspension react faster to surface changes.
2. Longer, straighter arms. Mazda’s own training materials describe lengthening the front upper and lower arms and mounting them to a rigid crossmember, producing more linear alignment changes through jounce and rebound.
3. Powerplant Frame (PPF) integration. The PPF ties the transmission to the differential in a rigid brace, and while it’s technically a drivetrain part, it affects suspension behavior by reducing driveline flex under throttle, which keeps the rear geometry doing what it’s designed to do instead of fighting torque wind-up. A stiffer driveline setup, paired with something like an aftermarket flywheel, sharpens that connection between throttle input and chassis response.

What Do Front and Rear Suspension Kinematics Actually Do?

Front and rear geometry aren’t doing the same job. The front end has to manage steering input on top of camber and toe, while the rear only has to manage camber, toe, and load transfer, which is exactly why the two ends evolved differently across generations.

At the front, the A-arm geometry produces a motion ratio of roughly 0.7:1 — the shock moves about 0.7 inch for every inch the wheel travels, because the shock mounts to the lower arm rather than directly to the knuckle. That ratio isn’t trivia. It directly changes how a given spring rate behaves at the wheel.

• A 1:1 motion ratio means the spring rate you install is the wheel rate you get.
• At 0.7:1, the wheel rate drops relative to the installed spring rate, because effective wheel rate scales with the square of the motion ratio.
• Skip that math and a “300 lb/in” spring can behave nothing like you expect once it’s bolted in.

Tie-rod placement matters just as much. If the tie-rod end doesn’t follow the same arc as the lower control arm through travel, the rack effectively steers the wheel on its own as the suspension compresses, a condition called bump steer. It shows up as a car that wanders slightly over bumps mid-corner, even with your hands steady on the wheel.

At the rear, NA/NB double-wishbone setups control camber and toe through the same pair of arms, while NC/ND multi-link rears assign the job to different links entirely — one longer lateral link manages toe, a shorter link manages camber. That split lets the outside rear wheel gain a slight amount of toe-in as the suspension compresses under cornering load, which adds stability precisely when the chassis needs it.

Here’s the motion ratio playing out in real numbers: if the wheel moves 1 inch, the front shock only travels 0.7 inch. A stock damper tuned for that ratio will feel noticeably harsher or softer if you fit a spring rated for a 1:1 strut car without adjusting for the ratio.

Pro Tip: Before you order a spring rate for a coilover setup, ask the seller for the wheel rate, not just the spring rate. A motion-ratio-aware spring and coilover setup saves you from guessing at the math yourself.

Which Geometry Factors Change How a Miata Handles?

Every handling complaint you’ve ever heard about a Miata traces back to one of five geometry factors. Learn to recognize them and a vague “it feels off” turns into a specific, fixable diagnosis.

Camber gain describes how much negative camber the outside wheel picks up as the suspension compresses in a corner. A well-tuned curve keeps the tire’s contact patch flat under load instead of rolling onto its outer edge, which is where mid-corner grip disappears. Too little camber gain and the car pushes wide; too much static camber added on top of a steep curve and you’re scrubbing the inside edge of the tire on straight roads.

Toe curves and bump steer come from geometry that doesn’t hold a straight steering path through travel. The symptoms are specific: a car that darts or twitches over bumps mid-corner, or pulls slightly to one side under braking, even though the alignment sheet looks fine at rest.

Roll center and roll couple determine how much the chassis actually leans and how that lean transfers load between the inside and outside tires. Lowering a Miata aggressively without correcting for it drops the roll center faster than the chassis, which increases the roll moment and can make the car feel less composed than before you lowered it, not more.

SAI/KPI and scrub radius control how the wheel wants to return to center after a turn. If steering feels heavy at low speed or doesn’t want to self-center out of a parking lot turn, that’s SAI (steering axis inclination) or scrub radius doing its job differently than stock, usually because of a wheel offset change.

Sway bars don’t change camber or toe curves directly, but they shift how much roll resistance comes from the front versus the rear, and that shifts the car’s balance toward understeer or oversteer without touching a single alignment spec.

1. Notice the symptom (pushing, twitchiness, heavy steering, excess lean).
2. Match it to the geometry factor above.
3. Check whether the fix is an alignment adjustment, a sway bar change, or a roll center correction kit.

Pro Tip: If a car feels twitchy specifically over bumps mid-corner but calm on smooth pavement, suspect bump steer before you touch the alignment. Chasing toe settings won’t fix a geometry problem in the tie-rod path.

How Do You Set a Repeatable Miata Suspension Baseline?

A baseline is worth more than any single “trick” setting, because without one, you can’t tell if a change actually helped or if you’re just reacting to a different road surface that day. Mazda Motorsports lays out a specific sequence for Spec Miata baseline setup, and it works just as well for a street car:

1. Set ride height first, since every geometry measurement downstream depends on it.
2. Disconnect the sway bar end links before corner-weighting, or you’ll preload the bar and get false numbers.
3. Corner-weight the car on a level scale set.
4. Set maximum front caster, since caster affects camber readings taken afterward.
5. Set camber to your target front and rear values.
6. Recheck corner weights, since camber and caster adjustments can shift them slightly.
7. Finish with toe alignment, front and rear.

Spec Miata baseline numbers give you a useful reference point, though factory-spec ranges shift depending on ride height and wheel size, so treat any number as a starting point rather than gospel for your specific car. Street cars typically run less aggressive camber than track-focused Spec Miata setups, since tire wear over daily miles matters more than the last few tenths of grip.

Professional tuners treat a documented baseline as the single most valuable habit in the whole process, since it’s the only way a sway bar change or a tire pressure tweak produces a result you can actually interpret.

Pro Tip: Write down every number, ride height, corner weight, camber, toe, before you touch anything. A baseline you can’t reproduce is worse than no baseline at all.

How Does Suspension Wear Change Geometry Over Time?

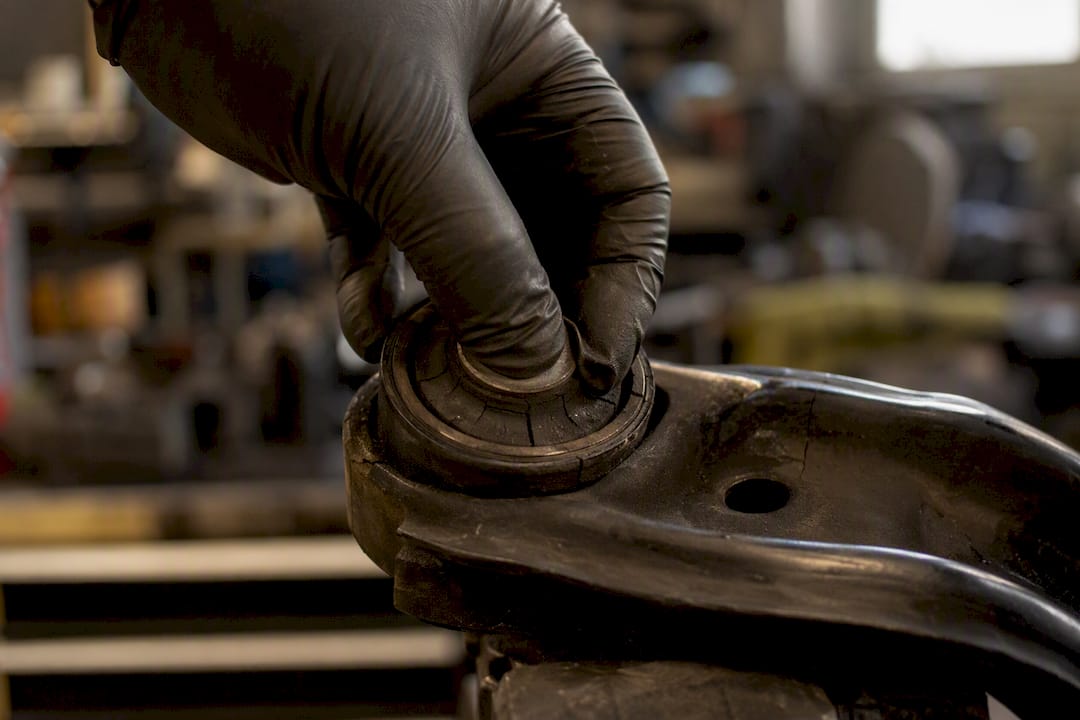

Worn suspension doesn’t just feel sloppy, it actively changes the geometry you set intentionally. Bushings degrade first on most Miatas, and as rubber control arm bushings compress and crack with age, the arm’s pivot point shifts slightly under load, which alters camber and toe curves without changing a single alignment setting on paper.

Ball joints and tie-rod ends develop play the same way. A tie-rod end with excess free play introduces a small amount of unpredictable toe movement exactly where you don’t want it, over bumps and mid-corner, which mimics bump steer even on a car with correct geometry design.

Worn shocks compound the problem differently. A shock that’s lost its damping control lets the suspension move through its travel faster than the geometry was designed to manage smoothly, so camber gain and toe changes happen more abruptly than intended, and the car feels less composed even though nothing on the alignment sheet has technically changed.

Springs sag over time too, particularly on cars with 100,000-plus miles on factory components. Sagged springs lower ride height gradually, which drops the roll center and static camber right along with it, so a car that once handled predictably can develop mild understeer or a wandering feel purely from age, with no single failed part to point to.

The fix isn’t complicated: inspect bushings, ball joints, and tie-rod ends for play at every alignment visit, and treat unexplained handling changes as a wear question before assuming you need a geometry modification.

What Tools Measure Suspension Geometry Accurately?

A four-wheel alignment machine remains the most accurate way to measure caster, camber, and toe, since it references the car’s actual thrust line and hub centerlines rather than eyeballed measurements. Most competent shops run one, and a proper four-wheel alignment catches issues a tape measure never will, like slight rear thrust angle problems that throw off how the car tracks straight.

DIY methods work for a rough baseline check between shop visits. A camber gauge that clamps to the wheel face gives a reasonably accurate camber reading for under $50, and toe plates or a simple string setup around the car can confirm toe within a fraction of a degree if you’re careful and patient. Neither replaces a proper alignment rack, but both catch a badly bent tie-rod or an obviously wrong camber setting before you drive somewhere on it.

Corner-weight scales are a different category of tool entirely, measuring load distribution rather than angle. Four individual scale pads under each tire reveal whether the car sits level side-to-side and front-to-rear, which matters because uneven corner weights change how much grip each tire actually has available before you’ve touched a single geometry setting.

For anyone serious about tracking their own baseline, a bump steer gauge (a dial indicator setup that measures toe change through suspension travel) is the specialized tool that separates casual tuning from genuine diagnostic work, though it’s a tool most enthusiasts rent or borrow rather than own outright.

Street Setup Versus Motorsport Suspension Tuning

Street and motorsport tuning start from the same geometry principles but pull in opposite directions almost immediately. A street setup optimizes for tire life, ride comfort, and predictable behavior across a huge range of conditions, wet roads, cold mornings, uneven pavement, so camber stays conservative and ride height stays high enough to clear speed bumps without drama.

Motorsport setups chase peak grip for a narrow, known condition: a specific track surface, consistent tire temperature, and a driver actively managing the car’s limits. That means more aggressive negative camber to keep the tire flat under sustained cornering load, stiffer springs matched carefully to the front’s 0.7:1 motion ratio, and alignment settings that would chew through tire tread on a daily commute in a few thousand miles.

Spec Miata racing formalizes this gap with published baseline numbers, but even outside that class, the pattern holds: track-focused Miatas typically run more front and rear camber, tighter toe tolerances, and stiffer sway bars than a comfortable street car ever would. The trade-off is real. More camber and stiffer springs sharpen turn-in and mid-corner grip, but they also transmit more road imperfection into the cabin and wear the inside tire edge faster in daily use.

The practical takeaway: decide which side of that trade-off you’re actually on before you copy a track setup sheet onto a car you drive to work every day.

Common Mistakes When Adjusting Miata Suspension Geometry

The single most common mistake is corner-weighting with the sway bar end links still connected. That preloads the bar against the chassis and gives you corner weight numbers that shift the moment you disconnect the links or drive the car, a documented pitfall that wastes an entire afternoon of adjustment work.

Ignoring motion ratio when selecting springs is the second big one. Buying a spring rate based on a strut car’s 1:1 ratio and expecting the same wheel rate on a Miata’s 0.7:1 front end leads to a car that rides far softer or stiffer than intended, since the effective wheel rate scales with the square of that ratio.

Adjusting camber and toe out of sequence causes quieter problems. Setting toe before caster and camber are finalized means you’ll need to redo it, since caster changes shift the camber reading and camber changes can nudge toe slightly.

Chasing a track alignment spec on a street car, without accounting for tire wear or daily comfort, is a mistake enthusiasts make more from excitement than bad judgment. And skipping the baseline documentation step means every future adjustment becomes a guess rather than a measured comparison, undoing the entire point of tuning in the first place.

Why Motion-Ratio Math Matters More Than Most Guides Admit

Most Miata suspension content treats geometry as a checklist: set this camber number, torque this bolt, done. That framing misses the part that actually separates a car that handles well from one that just looks aggressive on an alignment sheet, which is the motion ratio math tying spring selection to the geometry itself.

The conventional advice to “just get a camber kit and coilovers” skips the step that determines whether those parts even work together. A spring rate chosen without accounting for the front end’s roughly 0.7:1 ratio can leave a car under-damped or over-sprung despite every individual part being high quality.

If there’s one priority to take from this, it’s sequencing: establish a documented baseline first, understand how your specific generation’s geometry moves through travel second, and only then start layering in camber kits, stiffer springs, or roll center correction. Skipping straight to parts before understanding the geometry underneath them is how enthusiasts end up with expensive suspensions that handle worse than the stock setup they replaced.

Sources

• Developing and installing the suspension for a Spec MX-5 — NASA Speed
• 2020 Mazda MX-5 Miata suspension deep dive — Autoblog
• Engineering Tip #7: Spec Miata – Baseline Setup (Mazda Motorsports)
• Mazda MX-5 Miata new model training (training PDF)
• FrankenMiata: handling with a hacksaw — MotoIQ

FAQ

What Is the Suspension Geometry of a Miata?

Every Miata uses double-wishbone front suspension, while the rear shifted from double-wishbone on NA/NB models to a five-link multi-link setup on NC and ND models for better independent control of toe and camber.

How Do You Understand Suspension Geometry in General?

Start with three factors: camber gain (how camber changes through travel), toe curves and bump steer (unwanted steering from suspension movement), and roll center (the pivot point the chassis rolls around). Every handling trait traces back to one of these.

What Year Should You Avoid Buying a Mazda Miata?

There’s no single year to avoid across the board; each generation carries its own known wear items, like NA rust in certain body areas or higher-mileage NC/ND examples needing bushing replacements, so inspect the specific car’s suspension and body condition rather than ruling out a model year outright.

Why Are MX-5 Models So Affordable Used?

High production volume, a huge aftermarket parts supply, and a reputation as an easy DIY project keep used Miata prices low compared to other sports cars, even though the double-wishbone geometry underneath offers genuinely sophisticated handling.

How Do Motion Ratios Affect Spring Selection?

Because the front shock travels only about 0.7 inch for every inch of wheel travel, the effective wheel rate is lower than the installed spring rate, so spring selection has to account for that ratio rather than assuming a 1:1 relationship.
